750 Fully Automatic Corrugated Tile Steel Roof Roll Forming Machine
Working process
Tile drawing and tile
Machine parameter
| Material Width | 1000mm |
| Effctive width | 750mm |
| Thicknes | 0.3-0.6mm |
| Size | 5600mm*1400mm*1300mm |
| Weight | about 3tons |
| Diameter of shaft | Φ70,45#steel |
| Material of roller | 45#steel,Chrome |
| Main motor power | 3.0kw |
| Hydraulic station | 3.0kw |
| Number of rollers | 13stand rollers |
| Control system | PLC computer controller |
| Speed | 6-10m/min |
| Chain | 0.6 inch |

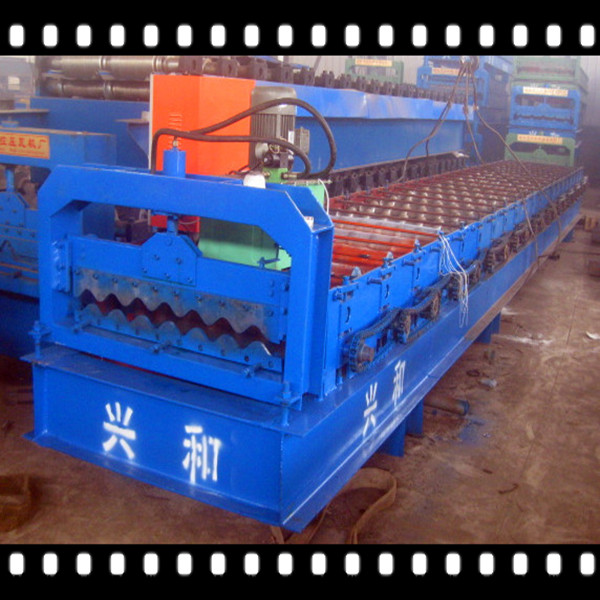

Machine shows
Package & Payment & Delivery
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect
the machine we send )
4. Validity: good for 30days
Our Service
1)- we can send our engineer to your site and do the training for
your men. you just only bear the cost for our engineer's air
ticket,visa,accormadation,food and transpotaion in your country
2)You can send your men to our factory. we will teach them how to
operate the machine withouttraining charges
3)Actually theres another cheap and easy way to choose. Every
machine leave our factory with one book of operation manual. You
can read through the manaul first ,and get familiar with the
machine. Then we can get a video call,and teach you on-line how to
operate the machine.
4)Apart from above training course,we also provide 1 year warranty
for all the easily broken part of the machine for free and
whole-life technical service support
FAQ
A QU: Does one machine can only produce one style panel profile?
AS: Not exactly.For wider and double layer making machine.
It can produce more than 6 kinds of panels.
B QU: How many panels does common machine produce?
AS: Maybe more than two.It depends on feeding width.
C QU: I need the machine to roll form 914mm width sheet and 1219 mm
width sheet , ok?
AS: Of course,OK.It is common feeding width. Many kinds of roll
forming machine designs available.
D QU: Is your machine suitable for thickness of 0.25mm, 0.28mm and
0.30mm and 0.36mm of sheet thickness?
AS: Yes.Common thickness is 0.3-0.8mm.But it can roll 0.25mm also.
E QU:What is effective width and cover width?
AS:Effective width=Cover with
It means the max distance between two waves of finishing panel
sheet.
