    Horizontal Installed Corrugated Wall Panel Forming Machine

    Ask Lasest Price
    Brand Name : XH
    Certification : SGS,BV
    Model Number : 9-130-910
    Price : USD5500-8500/SET
    Delivery Time : within 30 days after deposit
    Payment Terms : T/T
    Supply Ability : 20 SET/ MONTH
    • Product Details
    • Company Profile

    Horizontal Installed Corrugated Wall Panel Forming Machine

    Horizontal Installed Corrugated Wall Panel Forming Machine


    1.Forming Tile Show:


    910ban+


    2.Producing Process Show:


    Horizontal Installed Corrugated Wall Panel Forming Machine


    3.Equipment Technical Pamameter:


    Main Forming Machine Technical Pamameter:


    machine size

    5800mm*1400mm*1300mm

    Feeding width

    1000mm/1250mm

    Equipment weight

    3.5T

    Material of shaft

    45#steel adjustable treatment

    Out diameter of shaft

    φ70mm

    Material of roller

    Cr12, quenched treatment HRC58-60°C

    Number of forming rollers

    12 standard rollers

    Main frame

    300 H steel

    Thickness of medium plate

    14mm

    Transportation system

    Chain transportation

    Thickness of chain

    0.6 inch

    Main motor power

    3 KW

    Bearing

    6213

    Forming speed

    8-12m/min

    Rolling thickness

    0.3-0.8mm


    Ps:Parameters above is the standard configuration.Parameters can be designed as per your special requests.

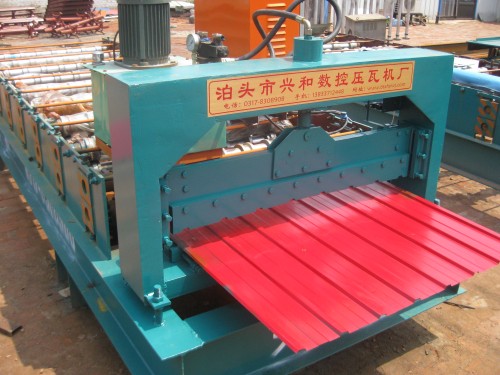

    4.Equipment Show:

    Horizontal Installed Corrugated Wall Panel Forming Machine


    5.Equipment Loading Show:


    Horizontal Installed Corrugated Wall Panel Forming Machine


    6.Customers to Visit:


    Horizontal Installed Corrugated Wall Panel Forming Machine

    Ps:our products have been exported to more than 20 countries and regions over the world, and maintained good cooperative relations with customers .

    We do firmly believe in technological innovation and making every detail of the product perfect is our ambition ever.


    7.About Us:


    Botou Xinghe Roll Forming Machinery Co.,Ltd. is located in botou - the home of roll forming machine . With8years of production experience ,we can offer you good quality machine at favourable price .

    8.Service:


    1) Pre-sale service:

    Freely provide project designing, process designing, choosing suitable equipment for you.

    2) Medium-sales service:

    Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

    3) After-sales service:

    We sent engineer to the scene to guide installation, debugging and training operators.
